Chinese Origin J30jz Rectangular Plug for Crimping Applications

J30JZ rectangular connector J30JZ/XN74TJCAL01 plug crimping wire 74 pins.

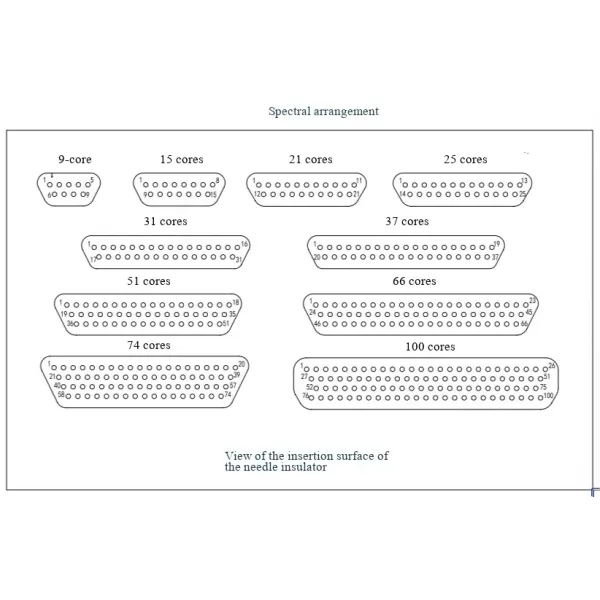

This connector adopts a new type of highly reliable twisted flexible pin, high-density contact pair arrangement, 74-pin, product complies with GJB2446A, and the shell is made of aluminum alloy nickel plating. The external dimensions are smaller than those of the J30J conventional product of the same specification, with a volume of only about 40% of the J30J conventional product. This product is widely used in the circuit connection of various mili-tary electronic devices. Its anti misoperation, fast connection or separation structure ensures stability and reliability even in harsh environments such as vibration and impact.

Essential knowledge for product selection

1. If there are no special instructions from the user when selecting wire pressing products, the J30JZ series products are equipped with AFR-250-0.12-250V white wires with a length of 250mm. If the user has special requirements for the wires, they should be indicated in the following format after the plug or socket model:
   1. Wire specifications: directly indicate the wire specifications (cross-sectional area), if omitted, it defaults to 0.12mm ²; (Suitable for specifications of 0.07~0.15mm ²) wire color Directly indicate the color of the wire, if omitted, it defaults to white.
   2. Wire length: The length of the wire extending from the end face of the outer shell, measured in millimeters.
   3. External protection of wires: directly indicate the type and requirements of external protection for wires, including nylon wire sleeves, metal shielding mesh, and heat shrink tubing.
2. If there is no technical agreement or consensus has not been reached before, the empty points in the product shall be blocked with sockets or pin fittings that have not been crimped with wires.
3. If the user has other special requirements for the wiring of the product (such as using single core wires, uncoated wire surfaces, tin plated wire surfaces, different wiring requirements for each hole, etc.), the wiring requirements should be specified in the contract.

FAQ

• Q: Are you a manufacturing company or a trading company?
  A: We are a manufacturer specializing in the customization of connectors and wiring harnesses.

• Q: Do you provide samples? Are they free of charge?
  A: We can provide a small quantity of free samples, but you will need to cover the shipping costs.

• Q: What about the shipping time?
  A: If there is stock, we will ship the item within 3-5 working days after confirming the deposit.Otherwise, it depends on the quantity you need.

• Q: What payment methods do you support?
  A: Telegraphic transfer, Alipay, Western Union, etc

• Q: What types of products do you produce?
  A: For rectangular connectors, wire harness customization, etc., please contact customer service for detailed communication.
