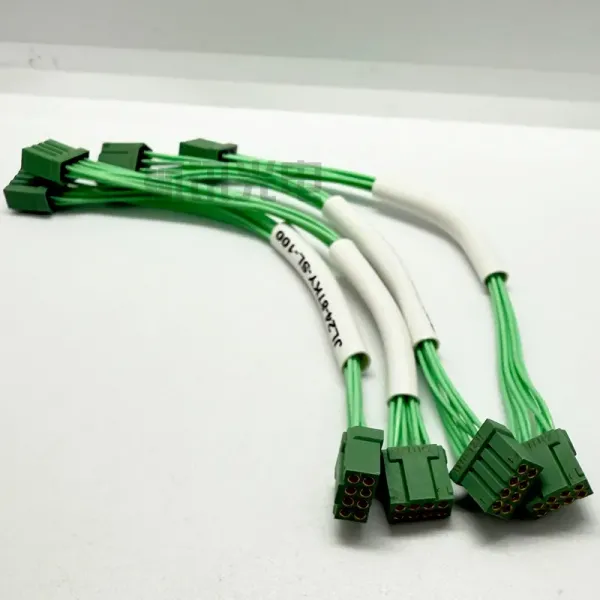

Jl24-8tky 8-Core Double Head Micro Flexible Installation Rectangular Aviation Connector.

Gender : Male and Female

Termination : Press-Fit

Application : PCB

HS Code : 8544422900

Price : US $15-17.7 / Piece

Interface Type : Through-Hole / PCB Mounting

Contact Finish : Gold

Poles : 2-8, 8

Fastening Type : Detent Lock

MOQ : 10 Pieces

Operating Frequency : Low Frequency

Model NO. : JL24-8TKY Double Head

Housings : Aluminium Alloy

Mounting Type : Surface Mount

Origin : China

Contact Now

Jl24-8tky 8-Core Double Head Micro Flexible Installation Rectangular Aviation Connector.

JL24-8TKY 8-Core Double Head Crimp Type Board-to-Wire Rectangular Aviation Connector.

JL24-8TKY Double Head is an 8-core double-head board-to-wire rectangular aviation connector in the JL24 series, designed to national and US mili-tary standards, focusing on high reliability and bidirectional connection adaptability for harsh scenarios like aerospace. With 8-core symmetrical double-head design and crimp connection, its gold-plated contacts have wide temperature, vibration and impact resistance, easy to install, enabling bidirectional stable connection and efficient signal and current transmission, suitable for narrow spaces.

Specifications
Rated Current	3A per contact
Rated Voltage	300V AC
Contact Resistance	≤10mΩ
Insulation Resistance	≥5000MΩ (normal)
Withstanding Voltage	1000V AC (normal)
Mechanical Life	≥500 mating cycles
Operating Temperature	-55°C ~ +125°C

Jiangsu HangXun Optoelectronics Technology Co., Ltd.

Qualification Certificate

Jiangsu Hangxun Photoelectric Technology Co., Ltd. is engaged in the research and development, production, and sales of electrical connectors and cable assemblies. With 12 years of experience in the industry, the company possesses strong design, research, and manufacturing capabilities. The factory covers an area of 1520 square meters.
Main products:1.rectangular connector:J30J,J30JA,J30JZ and HJ30J.
2.Wire harness customization:Customization of communication wire harness and drone wire harness.

Our company holds a certificate of quality management system certification for weapon equipment, issued by a professional organization, covering the manufacturing of electronic connectors and the sales of cable assemblies (excluding those requiring specific qualifications).

Connector assembly workshop

Wire harness processing workshop

J30J-ZKN/ZKN-J/ZKS

J30J-25ZKSP

J30J-25 core plug/socket crimp with wire

F1031 series 12-pin aviation plug to RJ45 connector

J30J series to DB9 serial port cable

J30J-51TJL-(one divided by eight)

Essential knowledge for product selection

If there are no special instructions from the user when selecting wire pressing products, the J30JZ series products are equipped with AFR-250-0.12-250V white wires with a length of 250mm. If the user has special requirements for the wires, they should be indicated in the following format after the plug or socket model:
- a) Wire specifications: directly indicate the wire specifications (cross-sectional area), if omitted, it defaults to 0.12mm ²; (Suitable for specifications of 0.07~0.15mm ²) wire color Directly indicate the color of the wire, if omitted, it defaults to white.
- c) Wire length: The length of the wire extending from the end face of the outer shell, measured in millimeters.
- a) External protection of wires: directly indicate the type and requirements of external protection for wires, including nylon wire sleeves, metal shielding mesh, and heat shrink tubing.
If there is no technical agreement or consensus has not been reached before, the empty points in the product shall be blocked with sockets or pin fittings that have not been crimped with wires.
If the user has other special requirements for the wiring of the product (such as using single core wires, uncoated wire surfaces, tin plated wire surfaces, different wiring requirements for each hole, etc.), the wiring requirements should be specified in the contract.

FAQ

Q: Are you a manufacturing company or a trading company?
A: We are a manufacturer specializing in the customization of connectors and wiring harnesses.

Q: Do you provide samples? Are they free of charge?
A: We can provide a small quantity of free samples, but you will need to cover the shipping costs.

Q: What about the shipping time?
A: If there is stock, we will ship the item within 3-5 working days after confirming the deposit.Otherwise, it depends on the quantity you need.

Q: What payment methods do you support?
A: Telegraphic transfer, Alipay, Western Union, etc

Q: What types of products do you produce?
A: For rectangular connectors, wire harness customization, etc., please contact customer service for detailed communication.
